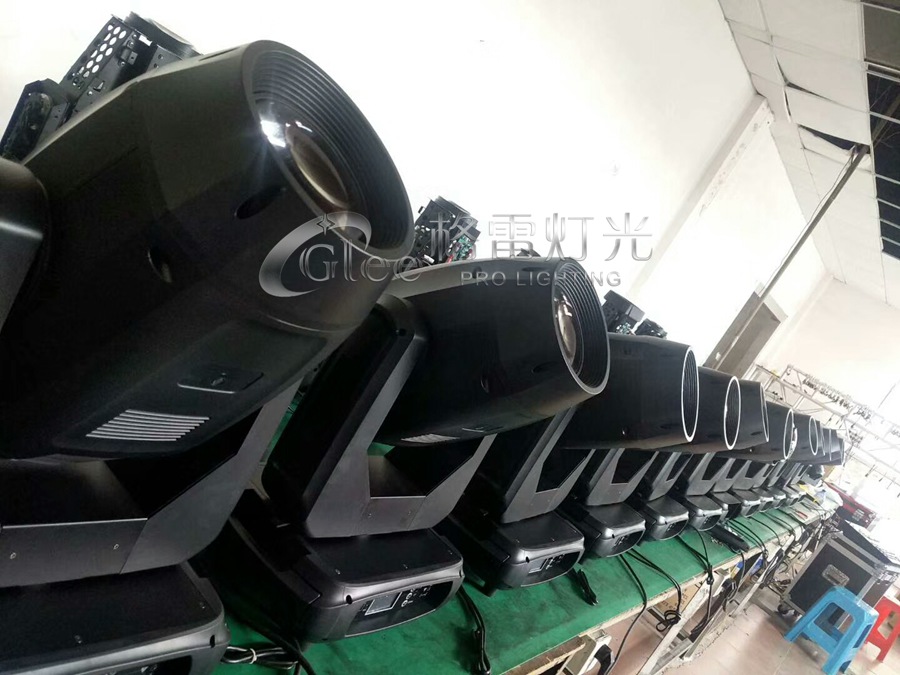

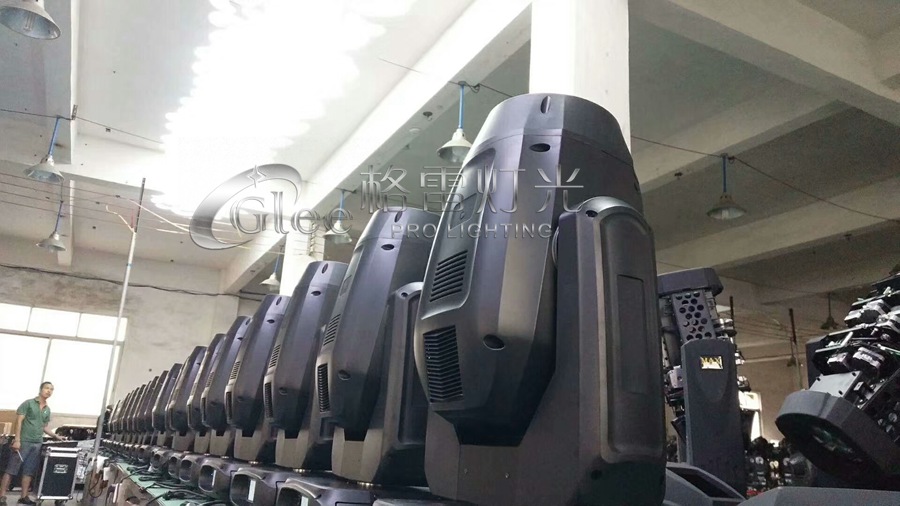

470W BSW 3in1 moving / CMY

Input Voltage: AC100-250V 50/60Hz, 700VA at 230V 50Hz

Automatic power supply switching

Light Source: 1* OSRAM SIRIUS HRI 470W lamp

Color Temperature: 7,800 K

Life: 1,500hrs

Luminoux flux: 23,000 lm

COLOR SYSTEM:

CMY color system based on 3 gradually fading color wheels

13 color filters on three wheels

2 CTO filters (3,200K and 2,500K) + 1 CTB filter

EFFECTS SECTION:

2 gobo wheels:

wheel with 7 HQ dichroic, indexable and interchangeable rotating gobos (25.9mm).

interchangeable and variable rotating wheel with 13+1 fixed

metal gobos (including 6 beam reducers).

Prism wheel：One rotated 8 prism and one 16-facet linear prism

CONTROL:

DMX512, master-slave and sound activated or auto operation

30 DMX 512 control channels

DMX protocol signal: USITT DMX 512

Display: Graphic LCD Display

DMX signal connection: 3 pole XLR input and output

Angle: Linear motorized ZOOM 3.8°-53°

RDM available (Remote Device Management)

PAN = 540° - TILT = 244°

IP20
