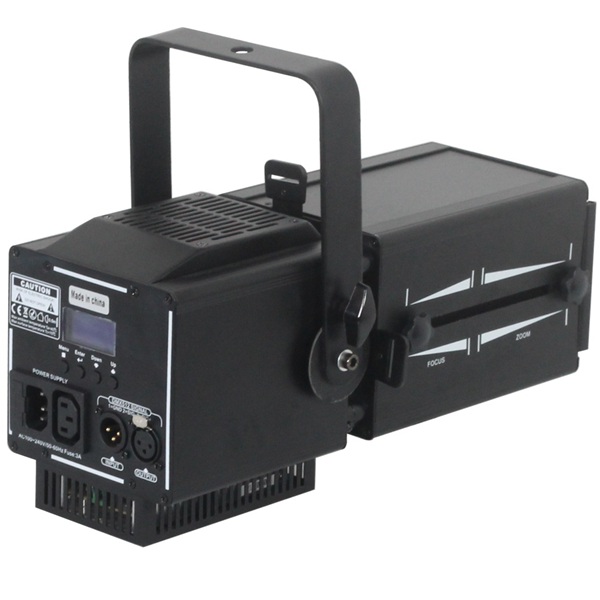

Mini zoom profile spot
Power Supply: | AC100V-240V, 50/60Hz |
Power Consumption: | 60W |
LEDs: | COB 60W LED, White Color |
Color Temperature: | 3200K or 6500K |
Color Rendering Index(CRI): | > 90 |
LED Lifespan: | >50,000 hours |
Flicker Free (Refresh Rate >1000 Hz) | |
Drive Mode: | Constant Current |
Beam Angle: | Zoom 13° ~ 35° |
Focus: | Manually |
Lens: | non-spherical glass |
Gobo Size: | B size, Outer Diameter: 37mm, Inner Diameter: 23mm |
Control Mode: | DMX512, LCD display+4 soft keys, 4 selectable dimming curves, Master/Slave, Stand-alone |
DMX Channels: | 3 |
Electronic Dimmer: | 0-100% linear dimmer |
Electronic Strobe: | 1-20 flashes/second |
Thermal management system ensures long life of LEDs | |
Control Panel: | Digital alphanumeric |
Cooling System: | Entire housing as a heat sink, copper pipes and plus super silent fan |
DMX Data In/Out: | both XLR 3 Pin (5 pin available) |
Power In/Out: | Power Con In/Out, Daisy Chain up to 6 fixtures |
Data Chain: up to 30 fixtures | |
Housing: | Aluminium |
Housing Color: | Black, other colors are available |
IP Rating: | IP20 |
Listing: | CE, RoHS, EMC |
Environment Temperatures: | -20°C ~ 40°C (-4°F ~ 104°F) |
Mounting: | Yoke, please see below. |
4 framing shutter blades included | |
Color filter frame (optional), Gobo holder (optional), Gobo Rotator (optional) Iris (optional) | |
Dimensions: | L35.2 x H15.8 x W17.8 cm |
Weight: | 3.5kgs (7.7 lbs) |
