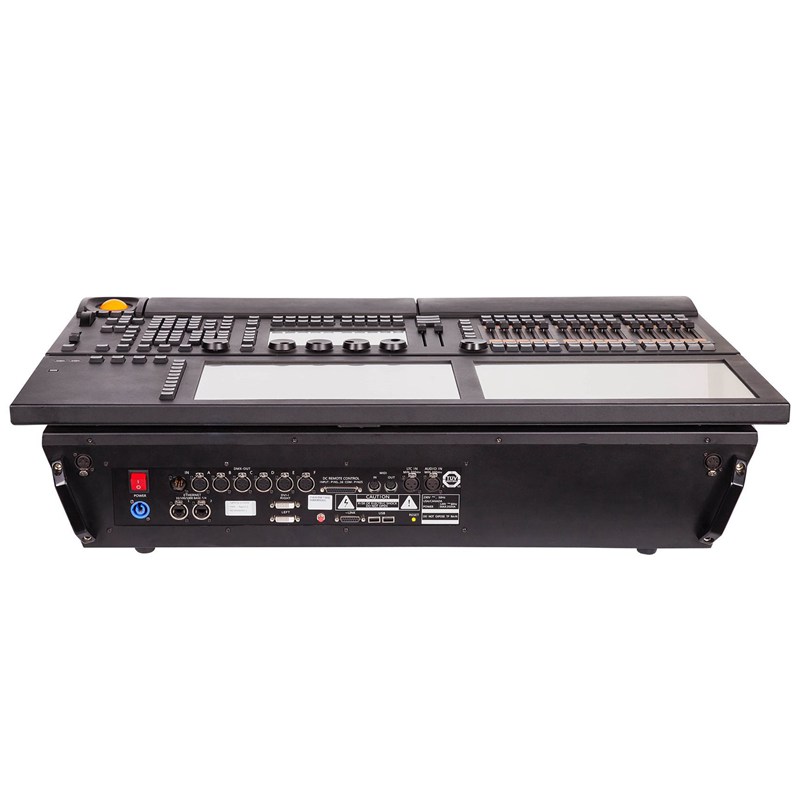

Professional grandMA2 light Lighting Console controller
Real-time control for up to 65,536 parameters per session in connection with FL
NPU (equivalent to 256 DMX universes)
4,096 HTP/LTP parameters
6 DMX outputs
2 internal TFT wide mode touchscreens (15.4" WXGA)
2external TFT screens can be connected (UXGA, touchscreens accepted)
1internal command screen – multi-touch (9" SVGA)
15 motorized executor faders
Integrated keyboard drawer
Built-in uninterrupted power supply (UPS)
2etherCON connectors, 5 USB 2.0 connectors
Motorized monitor wing
2 motorized A/B fader (100mm)
Individually backlit and dimmable silent (clickless) keys
Technical Spec.
Operating voltage/ Supply voltage:100V/260V, 50/60Hz
Power consumption:350W
Output connectors: 6 x XLR 5pin (DMX), 2 x DVI (external Monitor),2 x etherCON, 1 x MA Link (grandMA2 fader wing),5 x USB, 1 x DIN (MIDI), 2 x XLR 4pin (desklight)
Input connector: 1 x XLR 5pin (DMX), 1 x XLR 3pin (Sound),1 x XLR 3pin (SMPTE), 1 x DIN (MIDI),1 x Sub-D 25pol (Analogue Remote),1 x powerCON
