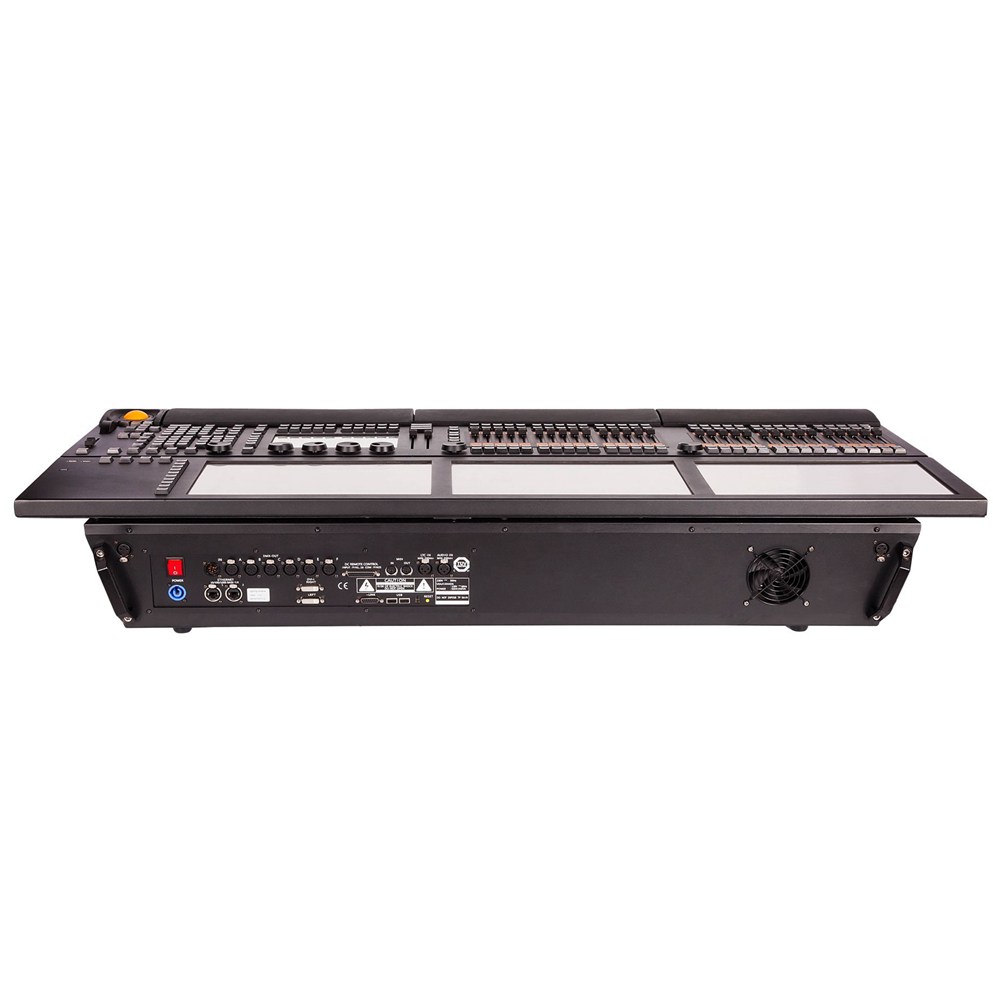

Professional grandMA2 full size Lighting Console controller

 Real-time control for up to 65,536 parameters per session in connection with F NPU (equivalent to 256 DMX universes)

 4,096 HTP/LTP parameters

 6 DMX outputs

 2 external TFT screens can be connected (UXGA,touchscreens accepted)

 1 internal command touchscreen (9")
 PowerCon In and Out

 2 etherCON connectors

 5 USB connectors Various control interfaces
 Various control interfaces.

Technical Spec.

 Operating voltage/ Supply voltage:100V/260V, 50/60Hz

 Power consumption：350W

 Output connectors: 6 x XLR 5pin (DMX), 2 x DVI (external Monitor),2 x etherCON, 1 x MA Link (grandMA2 fader wing),5 x USB, 1 x DIN (MIDI), 2 x XLR 4pin (desklight)

  Input connector: 1 x XLR 5pin (DMX), 1 x XLR 3pin (Sound),1 x XLR 3pin (SMPTE), 1 x DIN (MIDI),1 x Sub-D 25pol (Analogue Remote),1 x powerCON
