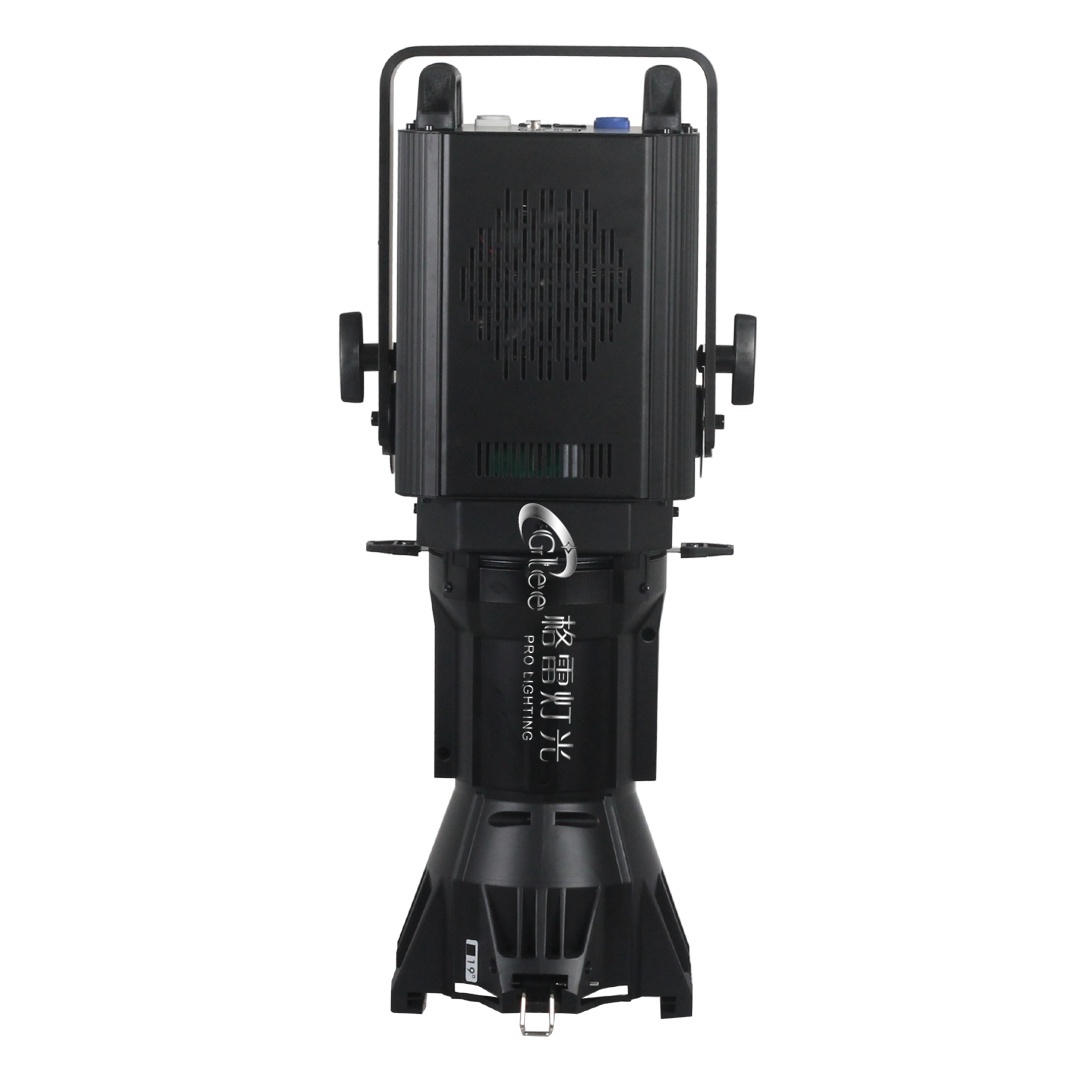

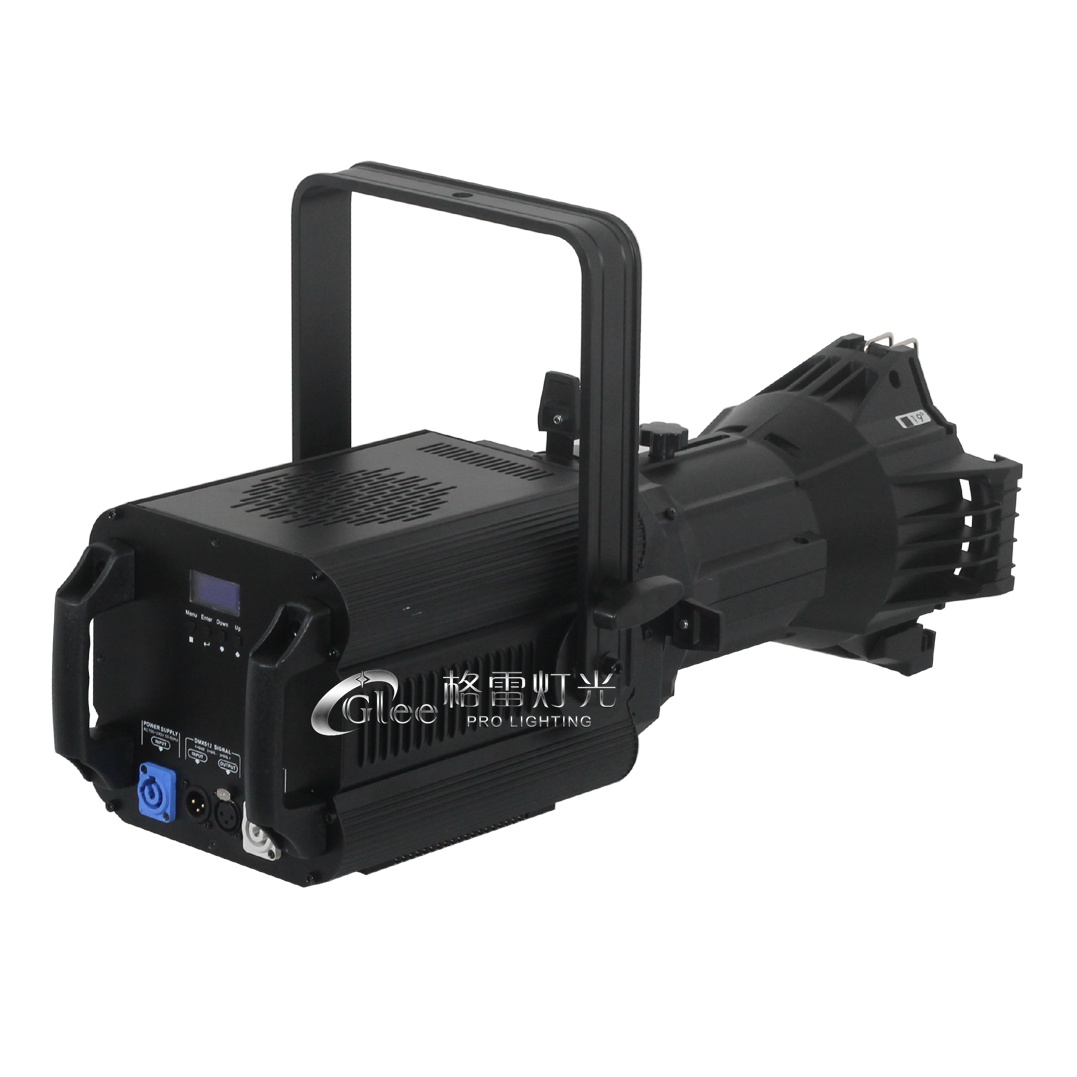

GL-4301A 300w White LED Profile
Power Supply:
AC100V-240V, 50/60Hz
Power Consumption:
300W
LEDs:
COB 300W LED, White Color
Color Temperature:
3200K or 6500K
Color Rendering Index(CRI):
> 90
LED Lifespan:
>50,000 hours
Flicker Free (Refresh Rate >1000 Hz)
Drive Mode:
Constant Current
Beam Angle:
10°, 19°, 26°, 36°, 50°
10°available on special request at additional cost.
Focus:
Manually
Lens:
non-spherical glass
Gobo Size:
B size, Outer Diameter: 80mm, Inner Diameter: 50mm
Control Mode:
DMX512, LCD display+4 soft keys, 4 selectable dimming curves, Master/Slave, Stand-alone
DMX Channels:
3
Electronic Dimmer:
0-100% linear dimmer
Electronic Strobe:
1-20 flashes/second
Thermal management system ensures long life of LEDs
Control Panel:
Digital alphanumeric
Cooling System:
Entire housing as a heat sink, copper pipes and plus super silent fan
DMX Data In/Out:
both XLR 3 Pin (5 pin available)
Power In/Out:
Power Con In/Out, Daisy Chain up to 6 fixtures
Data Chain:
up to 30 fixtures
Housing:
Aluminum
Housing Color:
Black, other colors are available
IP Rating:
IP20
Listing:
CE, RoHS, EMC
Environment Temperatures:
-20°C ~ 40°C (-4°F ~ 104°F)
Mounting:
Yoke, please see below.
4 framing shutter blades included
Color filter frame (optional), Gobo holder (optional), Gobo Rotator (optional) Iris (optional)
Dimensions:
L64.8 x H19.4 x W24.0 cm
Weight:
8kgs (17.6 lbs)
