Input Voltage:
|
90-260V, 50-60 Hz
|
|
Led Source:
|
19x40W OSRAM RGBW 4-in-1 Quad-Color led
Including a Round 2528 RGB Led Belt
|
|
Max Power :
|
800W
|
|
Protocol:
|
USITT DMX-512
|
|
Channels:
|
22CH(Normal)/ 26CH(Standard)/ 36CH(Shapes)/ 78CH(Extend)
|
|
Pan movement:
|
540°(16bit fine)
|
|
Tilt movement:
|
250°(16bit fine)
|
|
Advanced moving system:
|
Scan position memory, auto reposition after unexpected movement
|
|
fast, stable and quiet, auto X-Y repositioning
|
|
Zoom Angle:
|
10°-60°
|
|
Strobe:
|
Variable from 1-25 flashes or random strobe
|
|
Control Mode
|
DMX512, master-slave and sound activated or auto operation
|
|
Dimming:
|
0-100% Smooth linear LED dimmer
|
|
Controls:
|
2.4" TFT LCD display (320*240pix) with 4 control buttons
|
|
|
LCD display switch-off automatically after 60 seconds
|
|
Cooling System
|
Lower noise and efficient FAN cooling system
|
|

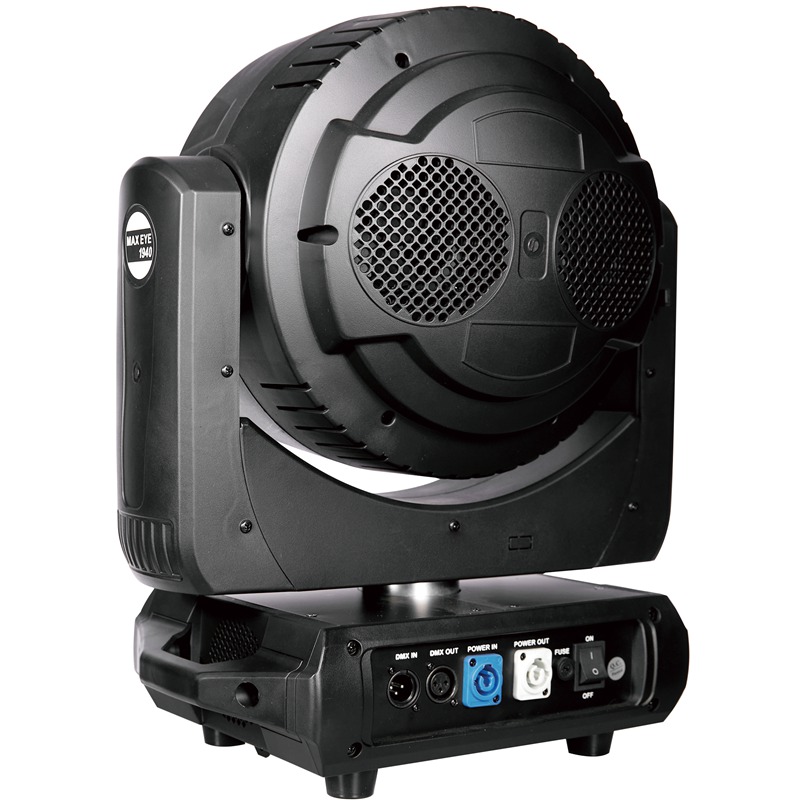

Power Connectors:
|
PowerCon＆#8482; compatible in/out power connectors
|
|
DMX Connectors:
|
3-pin DMX input/output (5-pin DMX is available)
|
|
Light Housing:
|
Durable plastic composite housing
|
|
Use
|
Indoor IP20 for stage, event, DJ shows, etc
|
|
More Function:
|

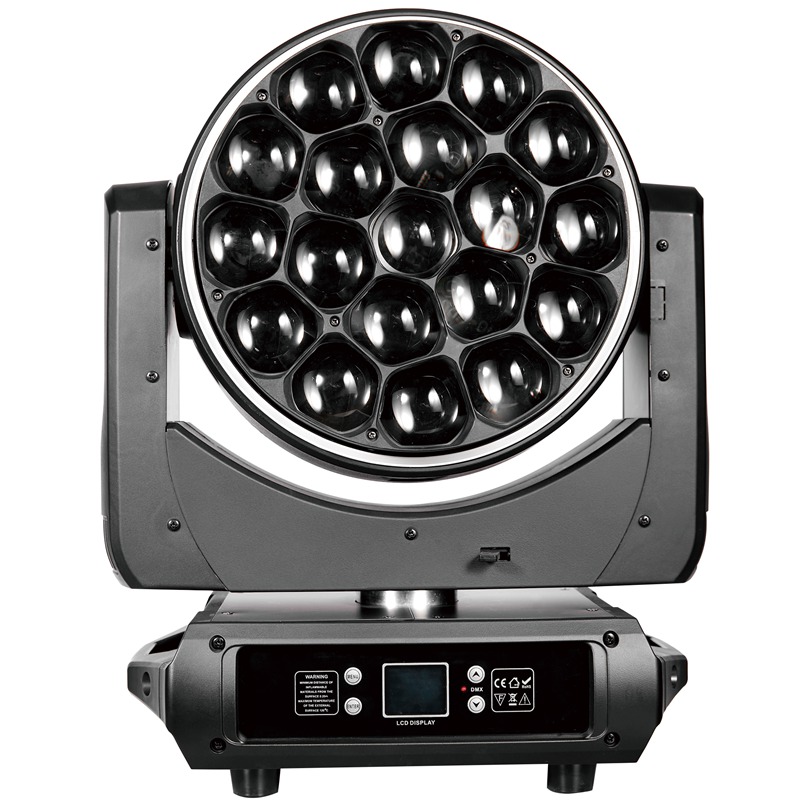

Each LED can be controlled individually. With unique honeycomb designed lens
|
|
The front lens can rotate without limitation in forward and reverse direction to create amazing effects
|
|
Display screen can be turned upside down with 180° to fit the installation in different place
|
|

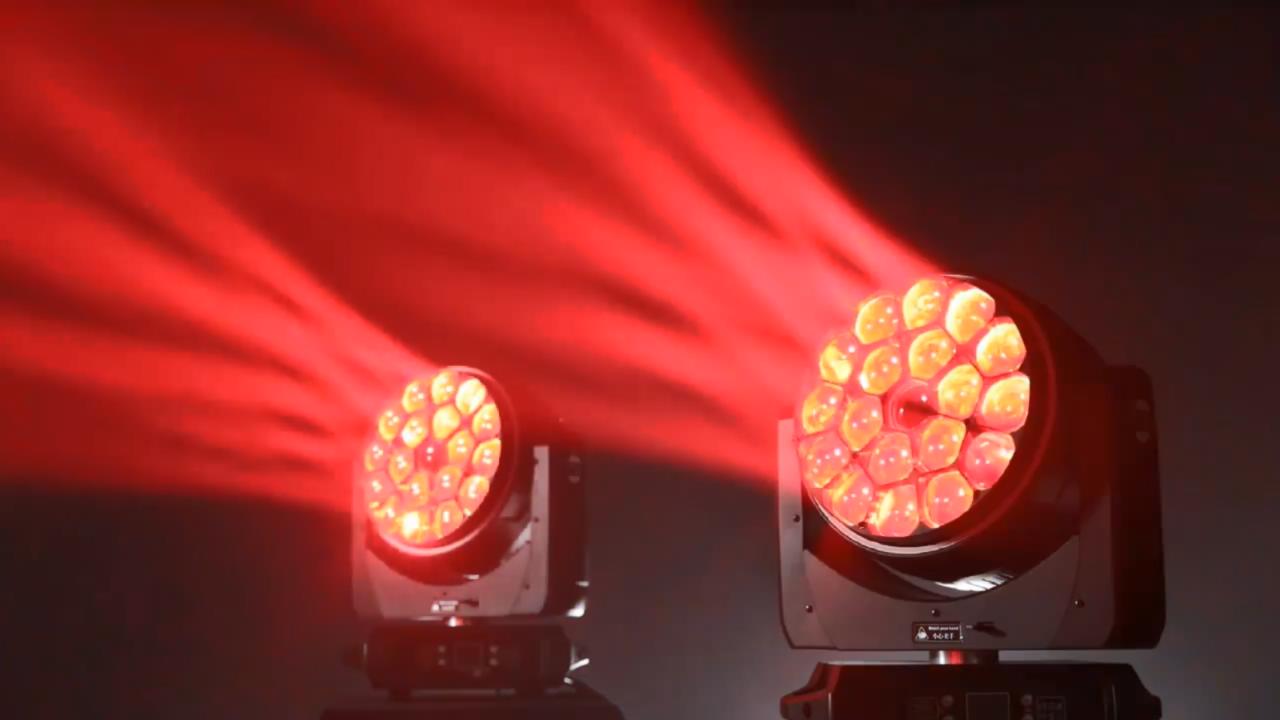

Can be used as beam, wash or effect light use (Kaleido effects)
|
|
The scanning position can be memory, it will be automatically reset without expected movement after rotation
|
|
Fan cooling (fan speed changed depends on temperature variation). Temperature detecting system (If the temperature detected error,
the light doesn't work to protect the fixture).
|
