Input Voltage:
|
90-260V, 50-60 Hz
|
|
Led Source:
|
1*800W 8000K white LED, 20000 hours life span and low power consumption
|
|
Lifetime:
|
20000hrs
|
|
CRI
|
High CRI Mode Ra≥90, Ra≥70(Optional). In addition, you can choose a high CRI source with Ra≥95
|
|
Power Consumption:
|
900W
|
|
Protocol:
|
USITT DMX-512
|
|
Channels:
|
34 DMX channels with RDM
|
|
Pan movement:
|
540°(16bit fine)
|
|
Tilt movement:
|
270°(16bit fine)
|
|
Frame:
|
4 groups and eight directions of blade, multiple design, the framing system can rotate 90° and each blade can shape individually and cut off
|
|
Advanced moving system:
|
Scan position memory, auto reposition after unexpected movement
|
|
fast, stable and quiet, auto X-Y repositioning
|
|
Zoom Angle:
|
Smooth linear motorized zoom ranging from 5°-55°
|
|
Strobe:
|
0-20Hz, synchronized, pulse effects
|
|
Color wheel:
|
4 colors + CMY Color system, halfcolor and rainbow effect
|
|
CMY:
|
Independent CMY, with linear color change,limitless color mixing
|
|
CTO:
|
Color temperature can be linear adjusted （2800K-7800K）
|
|
Fixed gobo wheel:
|
11 fixed gobos+open with shake effect and bi-direction rotation
|
|
Rotating gobo:
|
7 interchangeable, rotating, indexable, gobos+open, 3D gobos
|
|
Animation wheel:
|
Dynamic effect like flame or water, etc
|
|
2 Prisms:
|
3 facets Rotating prism
|
|
|
Flicker-free operation
|
|
Iris:
|
5%-100% motorized linear iris adjustment
|
|
Control Mode
|
DMX 512,RDM,Artnet(Optional),Auto-running ,Master/salve, Sound active, Built-in program
|
|
Dimming:
|
0-100% Smooth linear LED dimmer
|
|
Controls:
|
2.8" TFT LCD touch display (320*240pix) with 4 control buttons
|
|
|
LCD display switch-off automatically after 60 seconds
|
|
Cooling System
|
Lower noise and efficient FAN cooling system
|
|
Focus:
|
motorized focus,High-precision glass lenses, electronic linear HD focus
|
|
Frost:
|
35°-65° With frost effect, with 3 frost lever-heavy, medium and light
|
|
Power Connectors:
|
PowerCon＆#8482; compatible in/out power connectors
|
|
DMX Connectors:
|
3-pin DMX input/output (5-pin DMX is available)
|
|
Light Housing:
|
Cast aluminium
|
|
Use
|

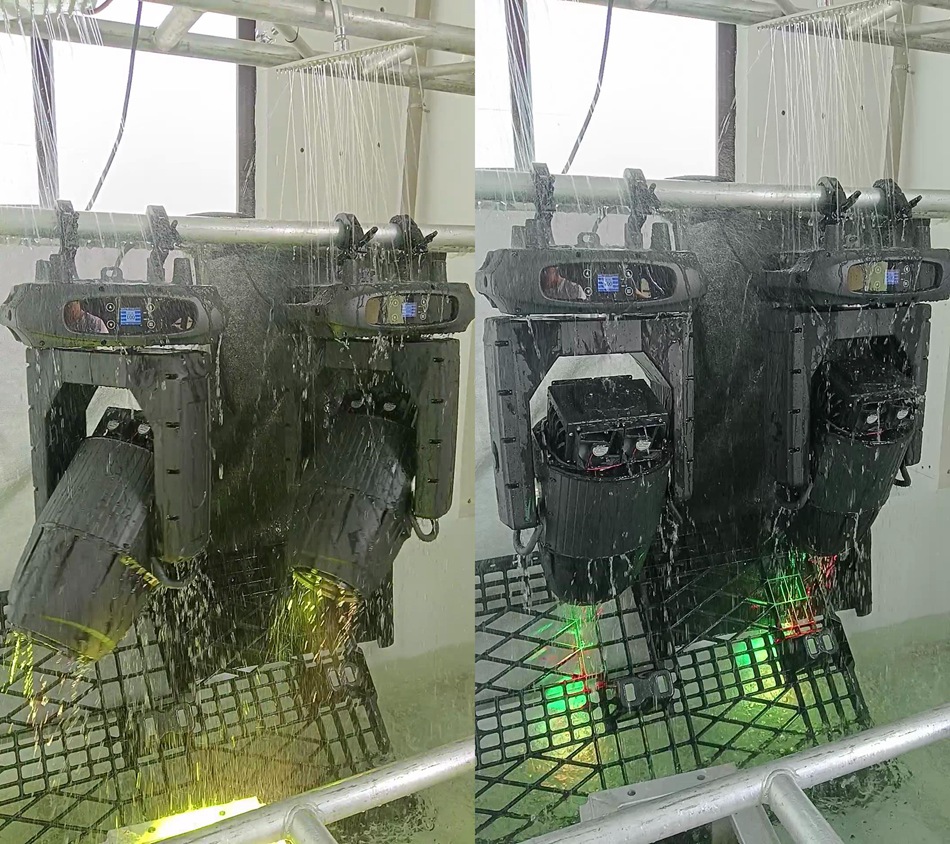

Outdoor IP65 for stage, event, afforest, architecture projects etc
|
|

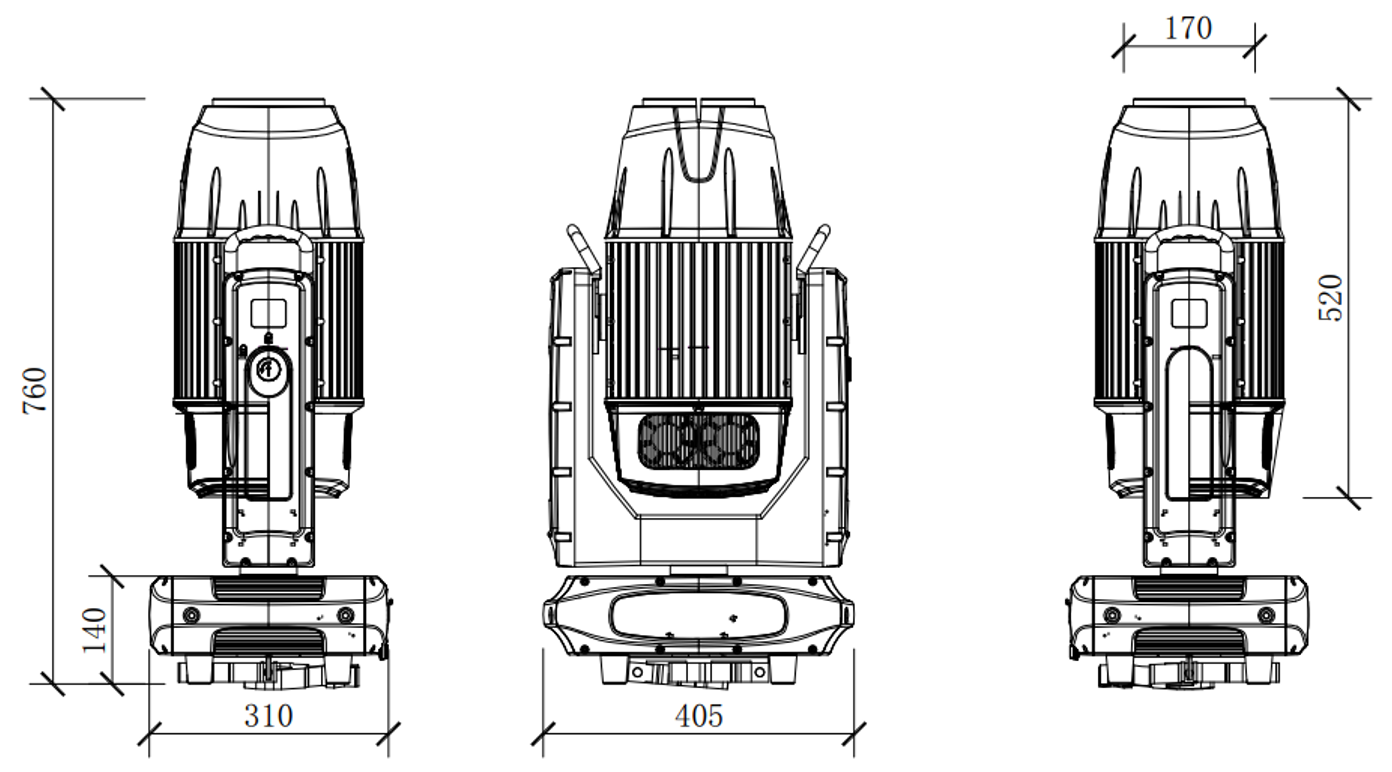

Fixture size
|
405*310*760 mm
|
|
N.W.
|
38kg
|
