Input Voltage:
|
90-260V, 50-60 Hz
|
|
Led Source:
|
1*400W 8000K white LED, 50000 hours life span and low power consumption
|
|
Power Consumption:
|
550W
|
|
Protocol:
|
USITT DMX-512
|
|
Channels:
|
22/26 DMX channels with RDM
|
|
Pan movement:
|
540°(16bit fine)
|
|
Tilt movement:
|
270°(16bit fine)
|
|
Advanced moving system:
|
Scan position memory, auto reposition after unexpected movement
|
|
fast, stable and quiet, auto X-Y repositioning
|
|
Zoom Angle:
|
Smooth linear motorized zoom ranging from 4°-35°
|
|
Strobe:
|
Variable from 1-25 flashes or random strobe
|
|
Color wheel:
|
12 dichroic filters +open, halfcolor and rainbow effect
|
|
CMY+CTO
|
Individual CMY + CTO color mixed system
|
|
Fixed gobo wheel:
|
12 fixed gobos+open with shake effect and bi-direction rotation
|
|
Rotating gobo:
|
7 interchangeable, rotating, indexable, gobos+open, 3D gobos
|
|
Prism:
|
Linear 8-facet + 3 facets Rotating prism
|
|
|
Flicker-free operation
|
|
Control Mode
|
DMX512, master-slave and sound activated or auto operation
|
|
Dimming:
|
0-100% Smooth linear LED dimmer
|
|
Controls:
|
2.8" TFT LCD touch display (320*240pix) with 4 control buttons
|
|
|
LCD display switch-off automatically after 60 seconds
|
|
Cooling System
|
Lower noise and efficient FAN cooling system
|
|
Focus:
|
motorized focus
|
|
Frost:
|
fine wash effect
|
|

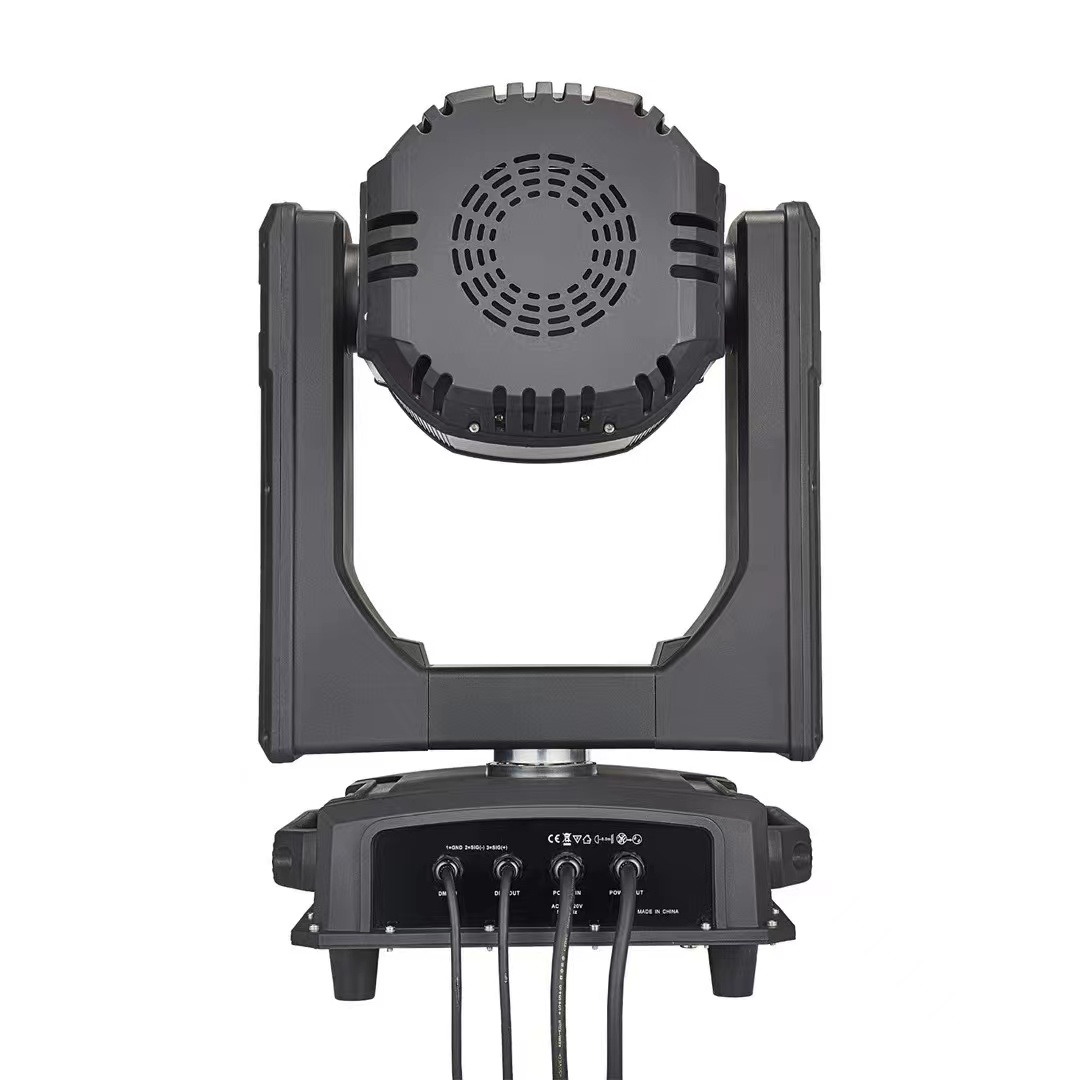

Power Connectors:
|
Outdoor waterproof compatible in/out power connectors
|
|
DMX Connectors:
|
Outdoor waterproof 3-pin DMX input/output (5-pin DMX is available)
|
|
Light Housing:
|
Cast aluminium + high strength engineering nylon plastic composite housing
|
|
Use
|
Outdoor IP65 for stage, event, DJ shows, etc
|
|

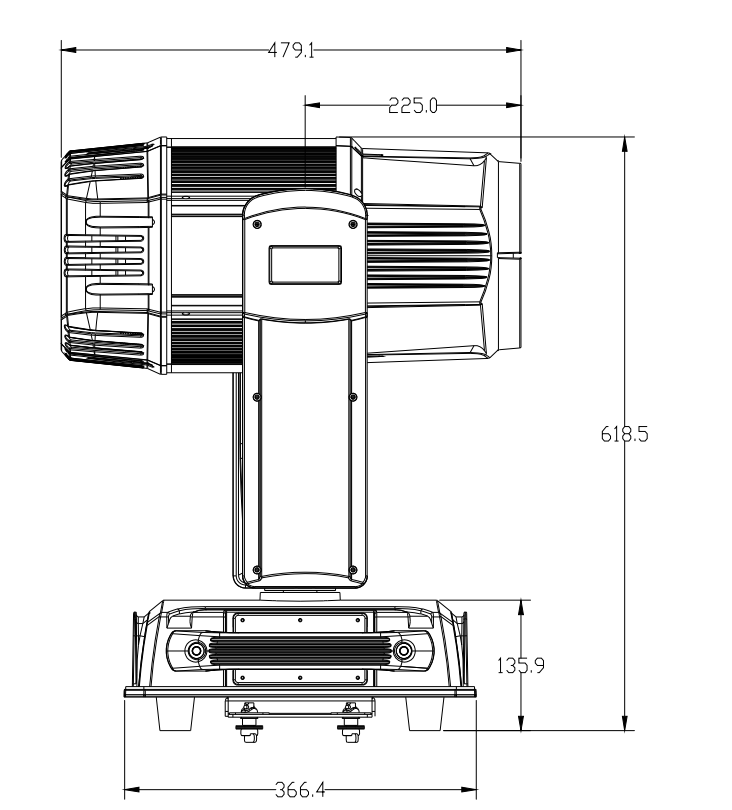

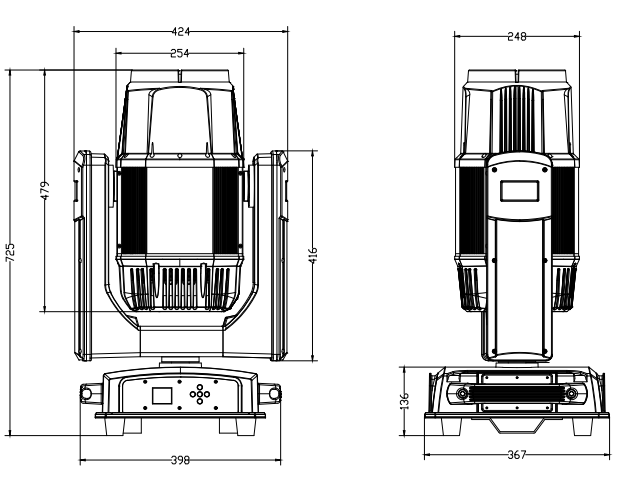

Fixture size
|
424*367*725mm
|
|
N.W.
|
27kg
|
