Input Voltage:
|
90-260V, 50-60 Hz
|
|
Led Source:
|
1x120W RGBL LED + 24x0.2W 5050 RGB LEDs for ring
|
|
Max Power :
|
150W
|
|
Protocol:
|
USITT DMX-512
|
|
Channels:
|
20CH/36CH/108CH/20CH/26CH, 5 channel mode optional
|
|
Pan movement:
|
540°(16bit fine)
|
|
Tilt movement:
|
220°(16bit fine)
|
|
Advanced moving system:
|
Scan position memory, auto reposition after unexpected movement
|
|
fast, stable and quiet, auto X-Y repositioning
|
|
Zoom Angle:
|
4°-48°
|
|
Strobe:
|
Variable from 1-25 flashes or random strobe
|
|
Control Mode
|
DMX512，Auto，RDM, Art-Net (Support for additional installation)
|
|
Dimming:
|
0-100% Smooth linear LED dimmer
|
|
CCT:
|
2000K-12800K Adjustable
|
|
Controls:
|
OLED display with 5 control buttons
|
|
|
display switch-off automatically after 60 seconds
|
|
Cooling System
|
Lower noise and efficient FAN cooling system
|
|

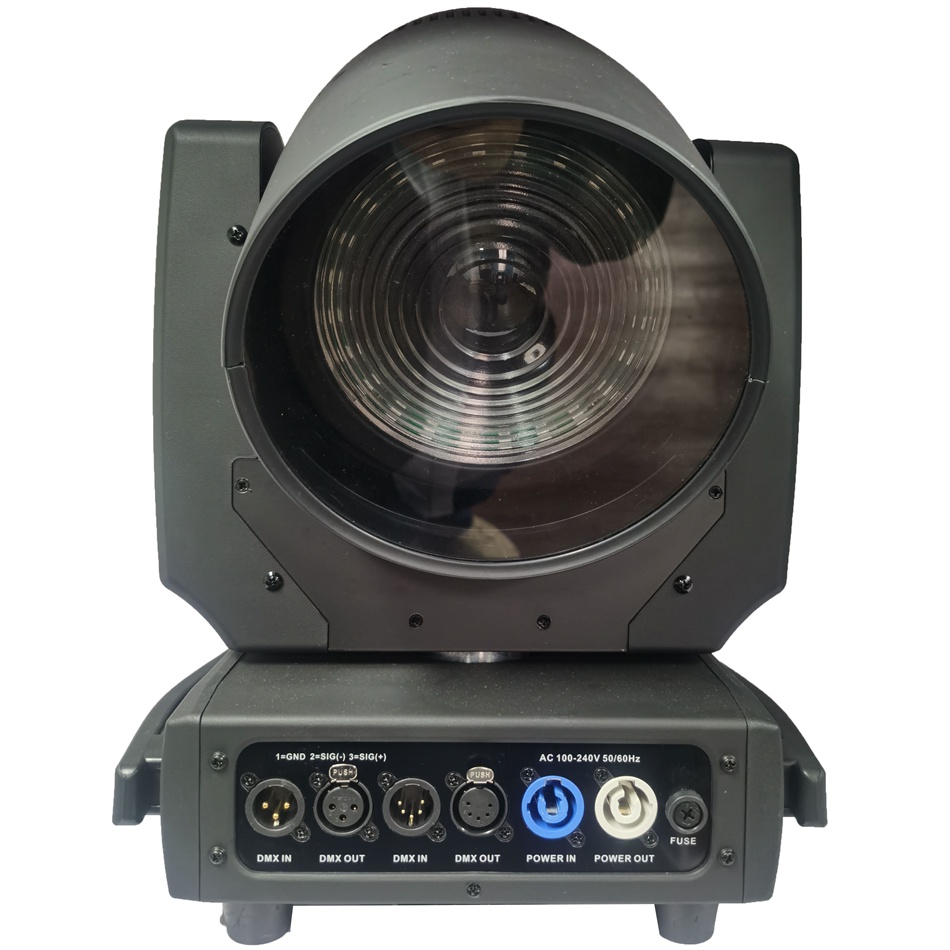

Power Connectors:
|
PowerCon＆#8482; compatible in/out power connectors
|
|
DMX Connectors:
|
3-pin + 5-pin DMX input/output
|
|
Light Housing:
|
Durable plastic composite housing
|
|
Use
|
Indoor IP20 for stage, event, DJ shows, etc
|
|
More Function:
|
deliver a tight, fast, and well-defined beam, but also a soft-edged wash with its championed Fresnel lens, often loved by lighting designers.
|
|
easy to deploy in large quantities and reduces shipping costs and environmental impact. It’s also perfect for venues with load-bearing limits or space-constraints.
|
|
offers precision control for the most demanding applications in broadcast and theatre and the ability to remove unwanted flicker in broadcast applications. It also offers beautiful eye-candy, empowering it to decorate the stage when the fixture is not being used as a beam or wash.
|
|
designed 120 W RGBL (Red, Green, Blue, Lime) LED engine with higher CRI / TM-30 / TLCI offers better rendering of people and costumes for demanding broadcast and theater applications.
|
|
Temperature control: Intelligent temperature control, capable of automatically adjusting the speed of the cooling fan and overheating protection
|
|
