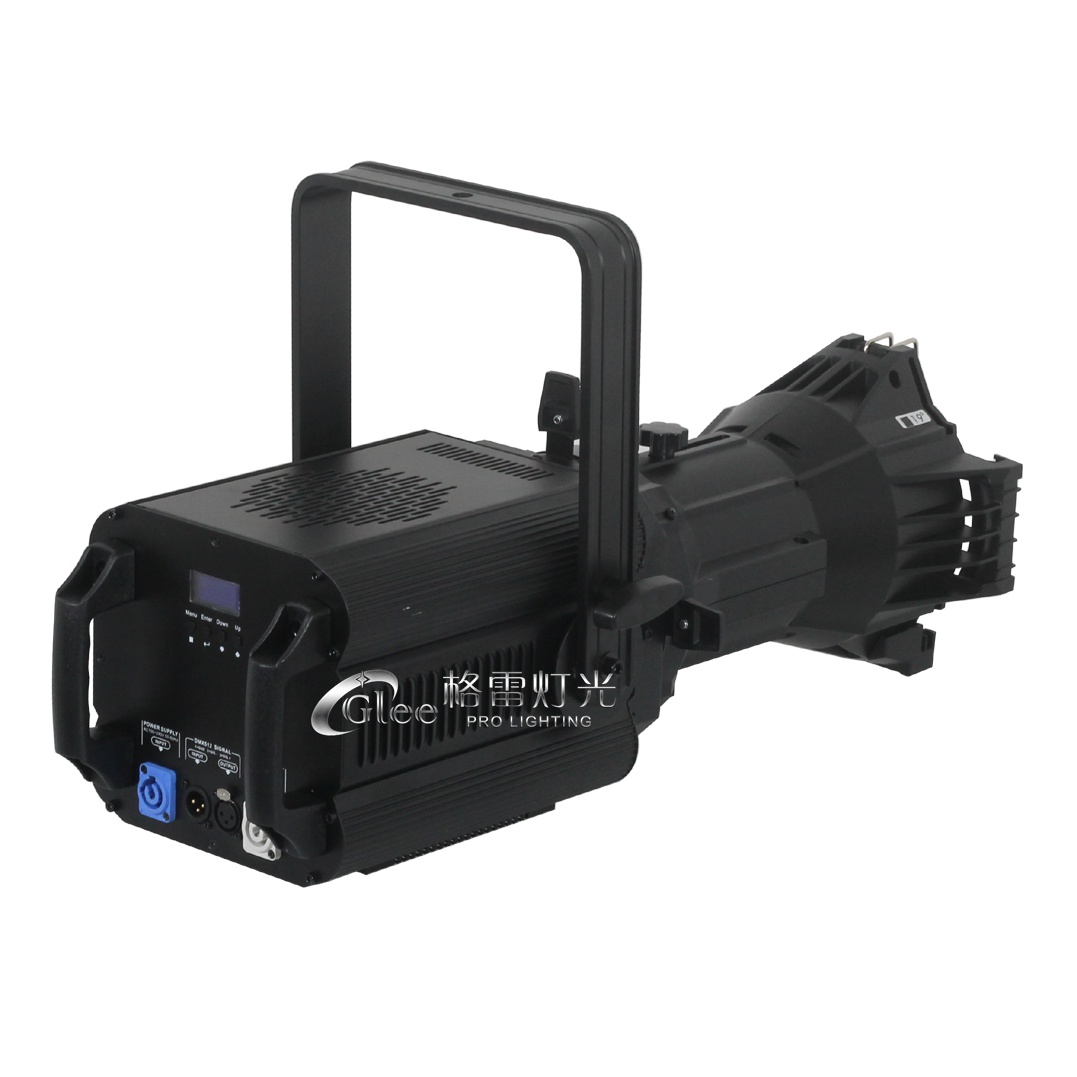

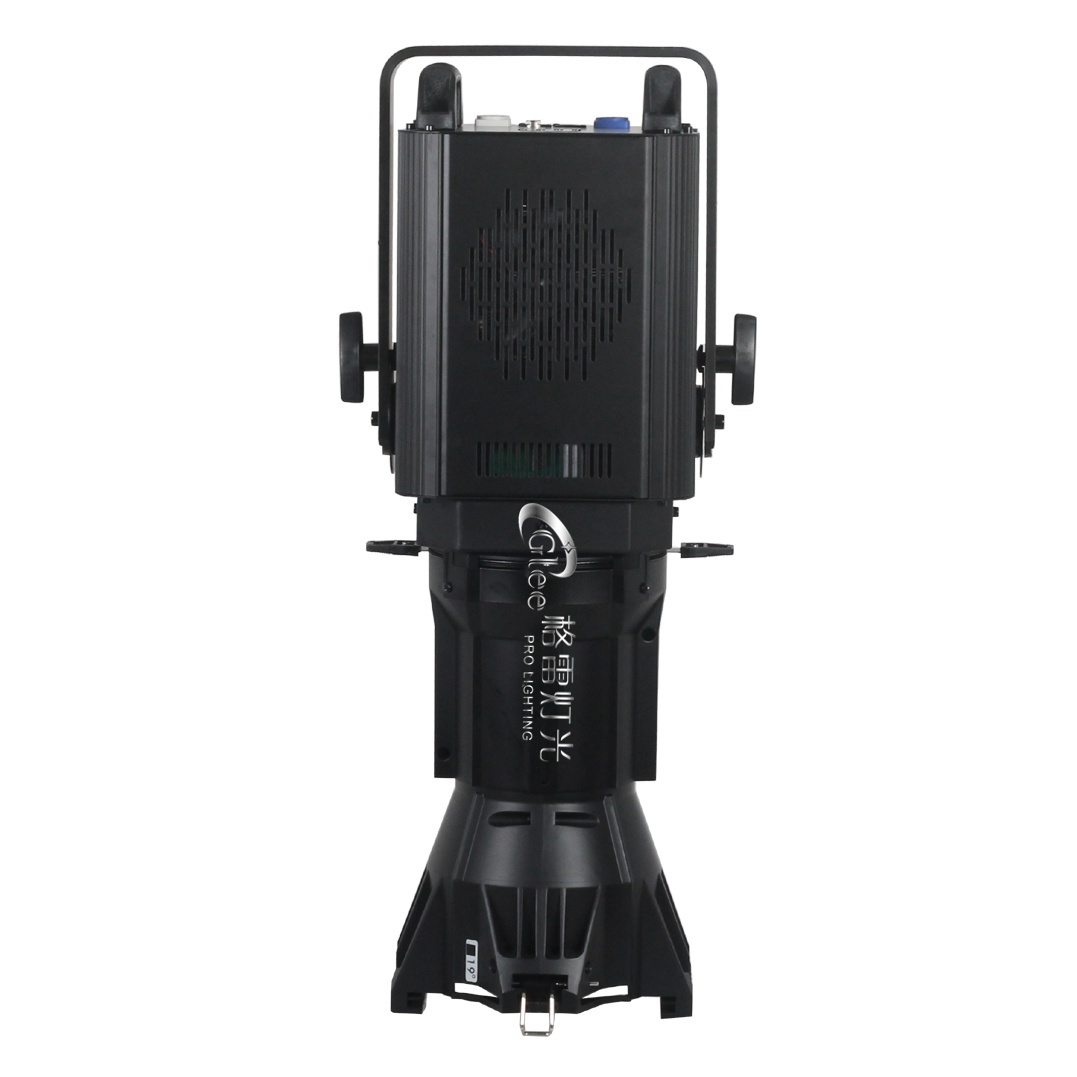

GL-4204 200w RGBW full color LED Profile Spotlight
Power Supply: AC100V-240V, 50/60Hz
Power Consumption: 200W
LEDs: COB 200W LED, 4 in 1, RGBW
Color Rendering Index (CRI): > 90
LED Lifespan: >50,000 hours
Flicker Free (Refresh Rate >1000 Hz)
Drive Mode: Constant Voltage
Beam Angle: 10°, 19°, 26°, 36°, 50°
10° available on special request at
additional cost.
Focus: Manually
Lens: non-spherical glass
Gobo Size: B size, Outer Diameter: 80mm,
Inner Diameter: 50mm
Control Mode: DMX512, LCD display+4 soft
keys, 4 selectable dimming curves, Master/Slave, Stand-alone
DMX Channels: 9
Electronic Dimmer: 0-100% linear dimmer
Electronic Strobe: 1-20 flashes/second
Thermal management system ensures long life
of LEDs
Control Panel: Digital alphanumeric
Cooling System: Entire housing as a heat
sink, copper pipes and plus super silent fan
DMX Data In/Out: both XLR 3 Pin (5 pin
available)
Power In/Out: Power Con In/Out, Daisy Chain
up to 6 fixtures
Data Chain: up to 30 fixtures
Housing: Aluminum
Housing Color: Black, other colors are
available
IP Rating: IP20
Listing: CE, RoHS, EMC
Environment Temperatures: -20°C ~ 40°C
(-4°F ~ 104°F)
Mounting: Yoke, please see below.
4 framing shutter blades included
Color filter frame (optional), Gobo holder
(optional), Gobo Rotator (optional) Iris (optional)
Dimensions: L64.8 x H19.4 x W22.2 cm
Weight: 8kgs (17.6 lbs)
Solid State LED Lighting (SSL) technology.
COB (Chip-On-Board) LED Technology.
Rivals and replaces HID and halogen lamps
with a fraction of power consumption.
Long life LED light source requires no
replacement during the life of the projector.
Stunning brightness.
A variety of lenses can be selected to meet
various creative requirements.
You can create the spot shape you want, and
change it easily and quickly.
You can insert fixed pattern clips,
rotating pattern devices and aperture (optional accessories) to meet different
projection requirements.
Compact design, Light weight and Cooling
system using heat pipe heat dissipation (1000 times faster than aluminum).
Color Rendering Index (CRI) > 90
16Bit dimming makes light output softer and
more exquisite. 4 dimming curves can be selected.
No mercury, no IR and no UV.
Meets CE, RoHs and GB7000.15–2000 standard.
The operation interface is simple and very
easy to use.
